Setup and configuration guide for Kmbox Network

circle-exclamation

Do not upgrade your firmware if your box was not activated before 2024.8.31; Normal upgrading is supported if your box was activated before 2024.8.31.

hashtag
Preparation

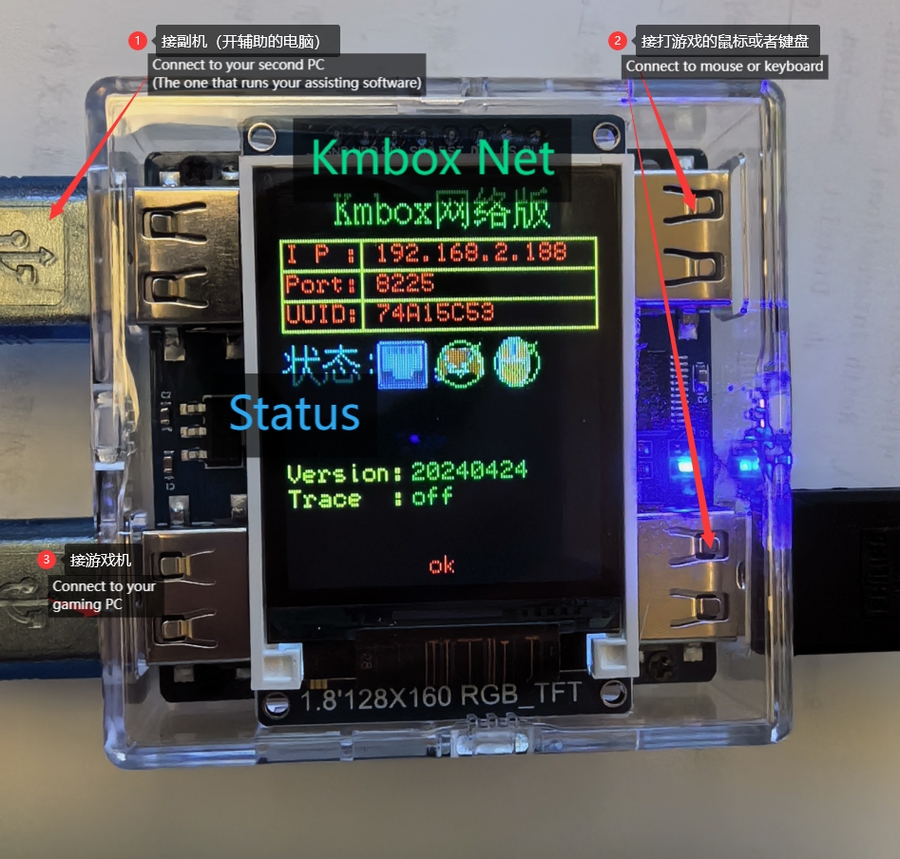

  1. Setup your Kmbox Network as image below:

circle-check

if you are gaming on a single PC, cables plugged to Port Serial and Controlled PC should both be connected to the Gaming PC.

hashtag
Install Network Adapter Driver

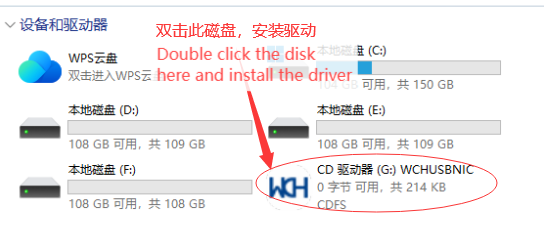

  1. After plugging the cable to the Net port, a disk will appear as shown in the picture below.

  2. Double-click the disk and run the exe file inside.

  3. If no disk to be found, download the driver mannually.Network Adapter DriverNetwork Adapter Driver, download, extract and install it on Second PCarrow-up-right

hashtag
​arrow-up-rightChange your Network Adapter IP Address

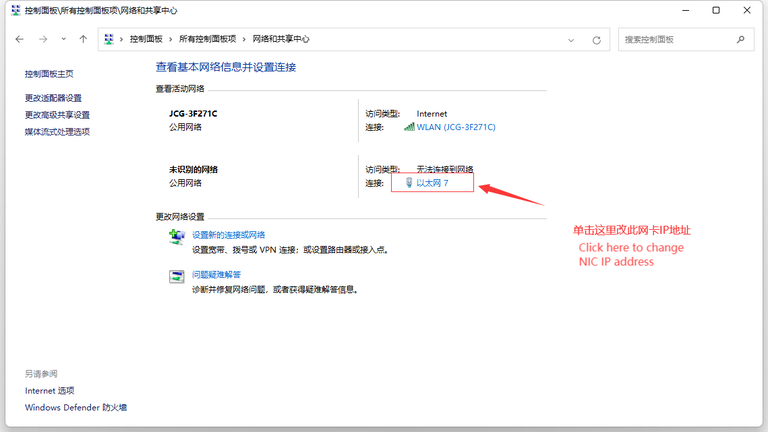

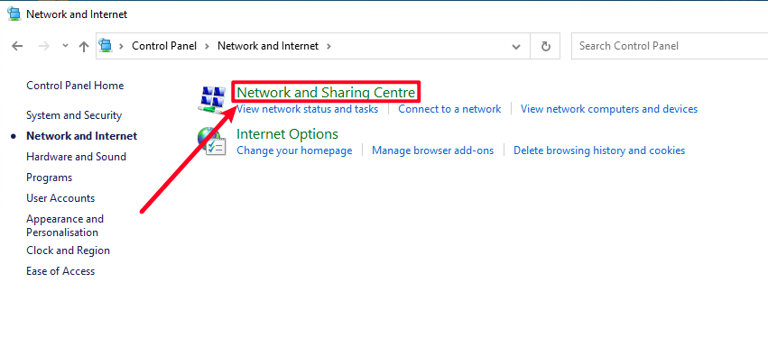

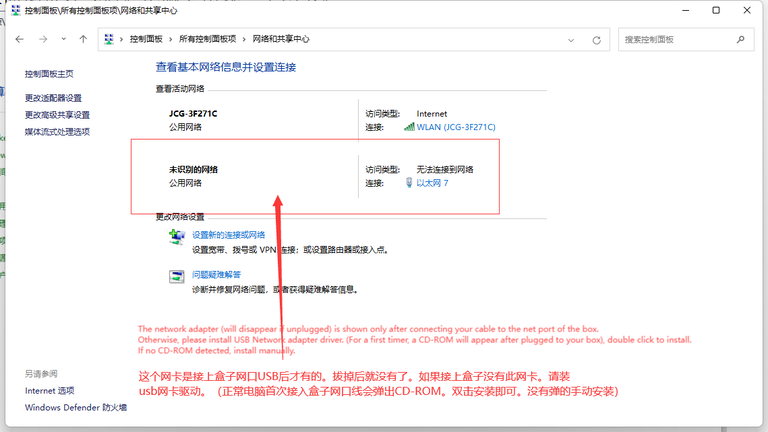

  1. Open Control Panel -> Network and Sharing Center

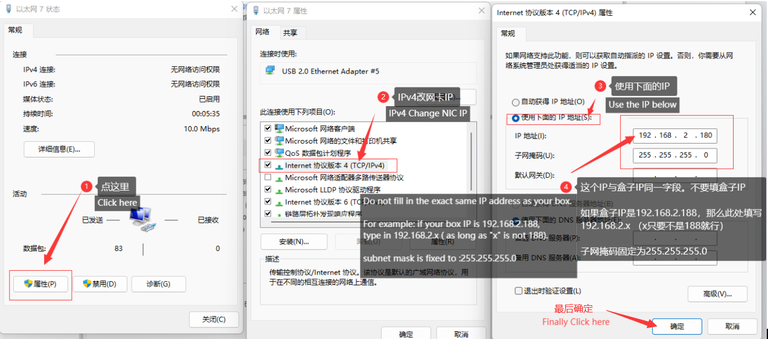

  1. Change IP Address

hashtag

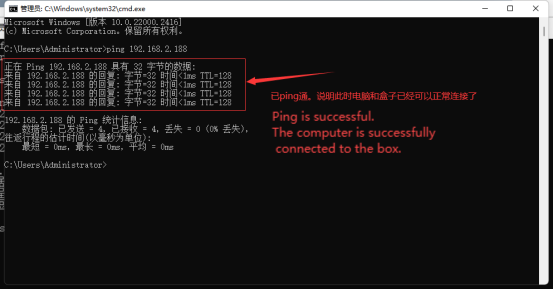

​arrow-up-rightCheck if ping is successful

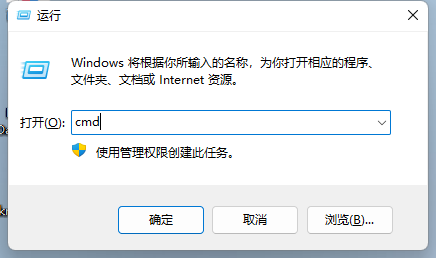

  1. Run cmd.exe

  1. Check if the IP on the kmbox could be successfully pigged. ping 192.168.x.x(IP of your kmbox)

  1. If the above is shown, the box is ready. Now you can refer to your dma software for further instructions.
